Clips and crossclips for anti-slip gratings for outdoor floors and stairs with grating steps


Walk safely on the anti-slip grating with the attached Crossclips

New anti-slip Crossclips for floors and stairs in metal grating of any size

The new Crossclips have been designed to be suitable for all grating sizes, in particular they are perfect for gratings with a square design. The surface shape prevents tripping in both directions of travel, particularly useful on external stairs, which require a change of direction.
The quality of the polyurethane guarantees atmospheric resistance, mechanical resistance to trampling and also driveability.

Anti-slip test carried out by Modena Centro Prove has verified the anti-slip resistance of the crossclips up to 29 degrees of slope

The anti-slip test

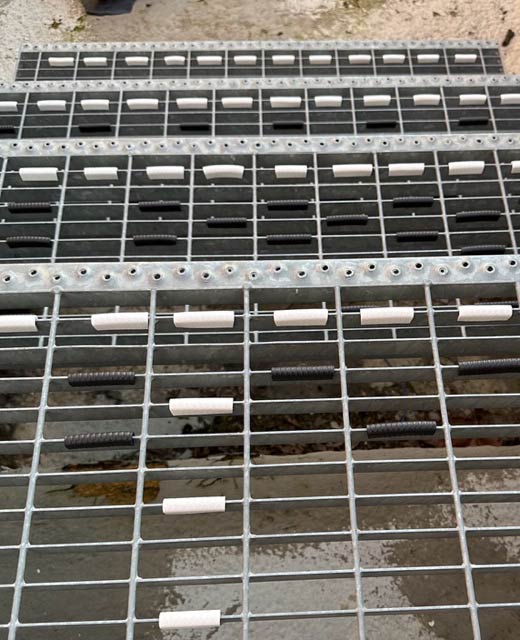

The anti-slip test was carried out by Modena Centro Prove srl on a 25 x 76 mm grill surface. In accordance with DIN standards, the surface of the grill was wetted with water and was increasingly inclined. The operator remains standing with shoes and weights in his hands, in accordance with the DIN 51130 test. Modena Centro Prove srl has thus verified the slip resistance of the Crossclips up to an incline of 29 degrees. The fastening density of the Crossclips must be adjusted according to the intensity of pedestrian traffic. The other feature is the anti-slip effectiveness for pedestrian traffic from all directions. They also have excellent resistance to car traffic. They are ideal for multi-storey external stairs made of metal gratings. The greater concentration of the Crossclips on the edge of the surface allows you to achieve an excellent improvement in the grip of the shoe when descending and at the same time an effective anti-panic effect when descending. When you go up, you have a precise idea of ​​the step.

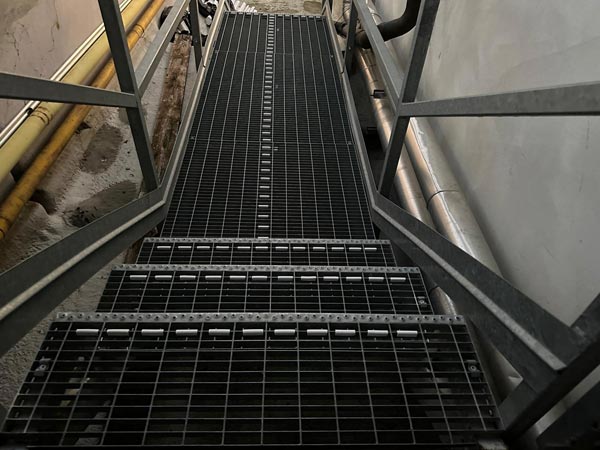

The Fire Brigade "prefer" our clips

Emergency stairs must be more efficient than internal stairs. Our clips are born from signs of firefighters. In safety staircases, the grids and metal gratings must ensure a safe and immediate evacuation of the building without obstacles.

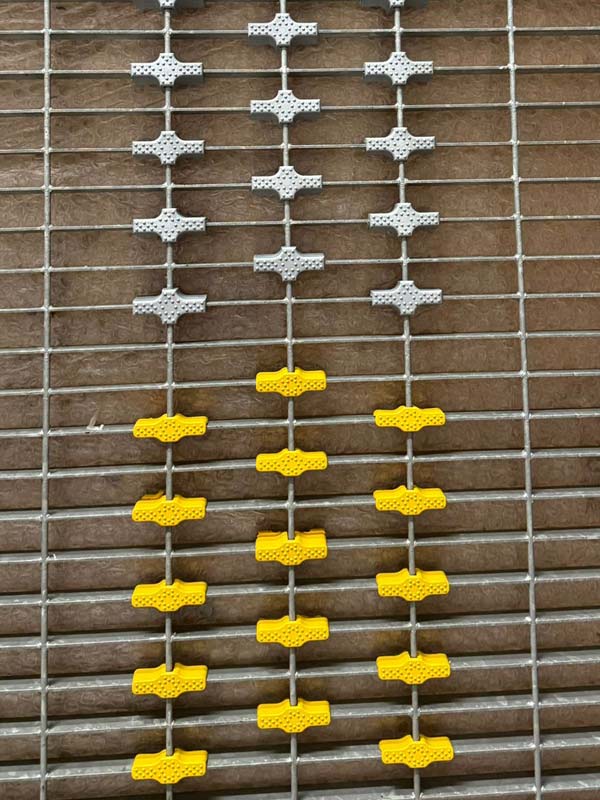

Our non-slip clips maintain all visibility through the grids when looking from the ground floor.

The PVC clips do not feed the spread of fire as they are small pieces distant from each other. During a fire, the fire brigade with hydrants flood the structures with water and foam and the emergency stairs must be efficient and non-slip.


Size and structure of the PVC anti-slip clips

General characteristics of PVC clips for non-slip grid tops and metal ladders

The clip is designed to embrace the vertical plate, with a hemispherical surface to avoid tripping, thickness 4 / 5 mm . The tread thickness is 2.5 mm and is made of non-slip PVC. The base width is 50 mm + - 5 mm. The clips are particularly resistant to trampling wear and temperature changes due to bad weather. PVC is self-cleaning and cannot be attacked by hydrocarbons, its duration is estimated at over 5 years, dictated by the nature and volume of the traffic it receives. They are easily integrated as needed. They are an ideal non-slip solution both in public and industrial environments, particularly suitable for internal and external grating stairs.

Bar grating with quotas

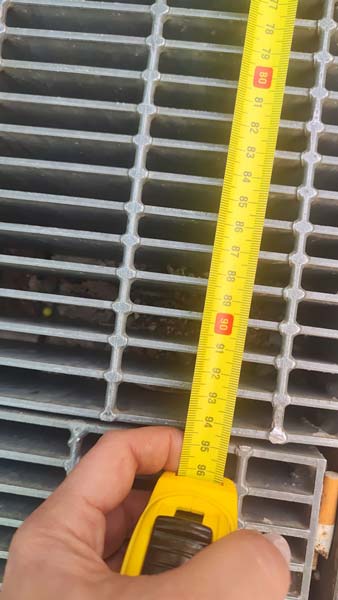

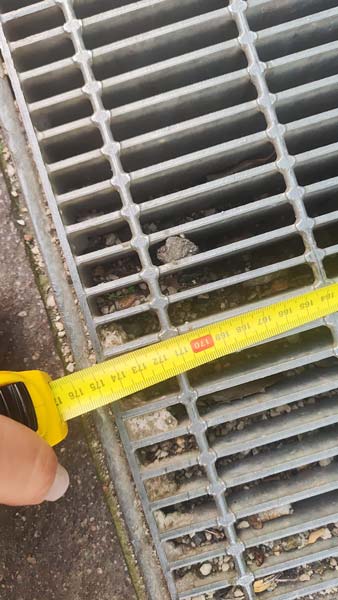

Tell us the dimensions of your grating: mesh width (B) and thickness (S)

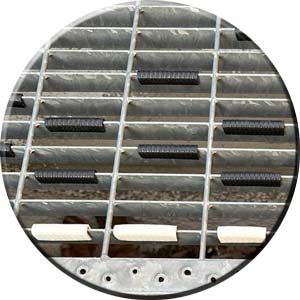

Non-slip grating clips in PVC

Kindly, before requesting a supply of non-slip clips, let us know the width of the mesh grid (Size B), the thickness (size S) and how many square meters you have to be equipped with clips, including the steps of the staircase, landings and floors in grilled. We will reply as soon as possible advising you on the quantity of clips to insert.

Width size at the base 50 mm

It is advisable to insert the clips every 10/12 cm alternating, from 90 to 110 pieces per square meter.

Features of the PVC clip:

  • Designed and manufactured in Italy
  • Self-cleaning
  • Does not collect dirt / dust
  • Antistatic
  • Non-slip always, even when used (guaranteed for 5 years for normal traffic)
  • Anti-stumbling
  • Does not come out due to impacts (thanks to the steel spring inside)
  • DIY fixing, very simple
  • Easily replaceable
  • It does not deform
  • Resistant from - 30 ° C to + 45 ° C
  • Made of lead-free PVC
  • They let water and snow flow
  • They make no noise when walked on

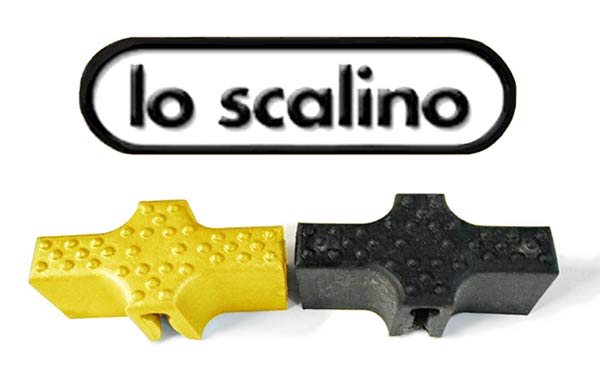

Non-slip cross clamps for gratings of all sizes

Crossclips with versatile installation on all grid sizes

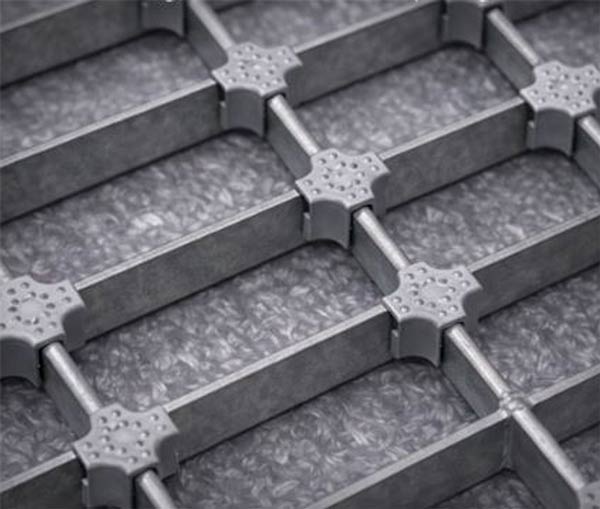

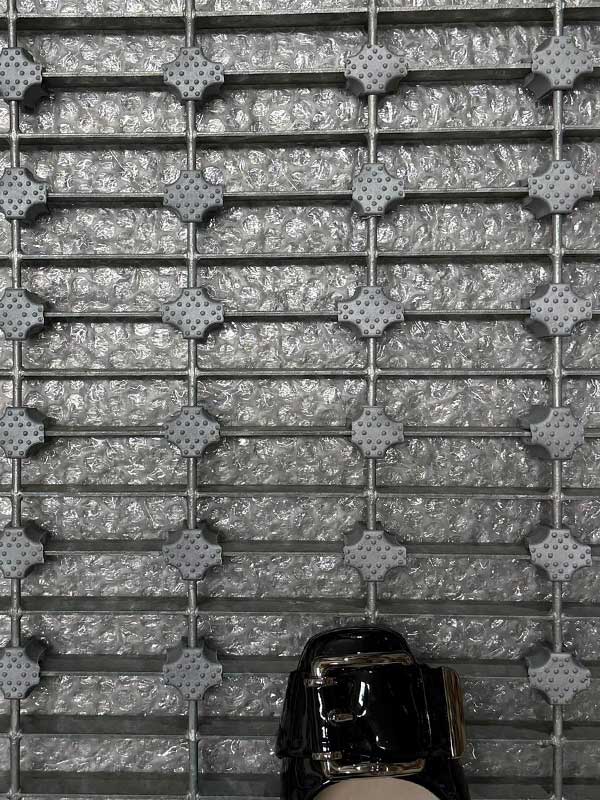

Perfect for square grids such as 30 x 30 mm. The crossclip is designed to embrace the intersection of the vertical plates with the horizontal ones, but it is versatile and can be positioned at any point of the grid and in both directions of walking.

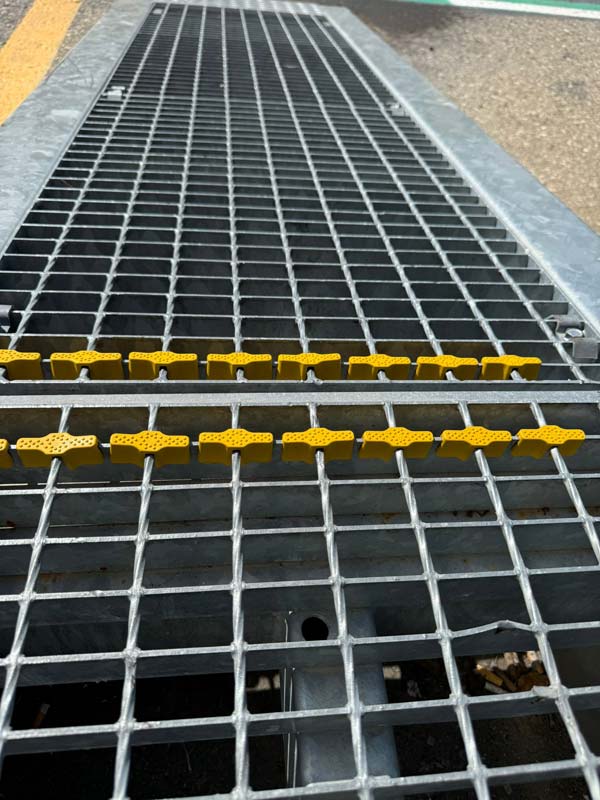

Crossclips on steps of a metal grating staircase

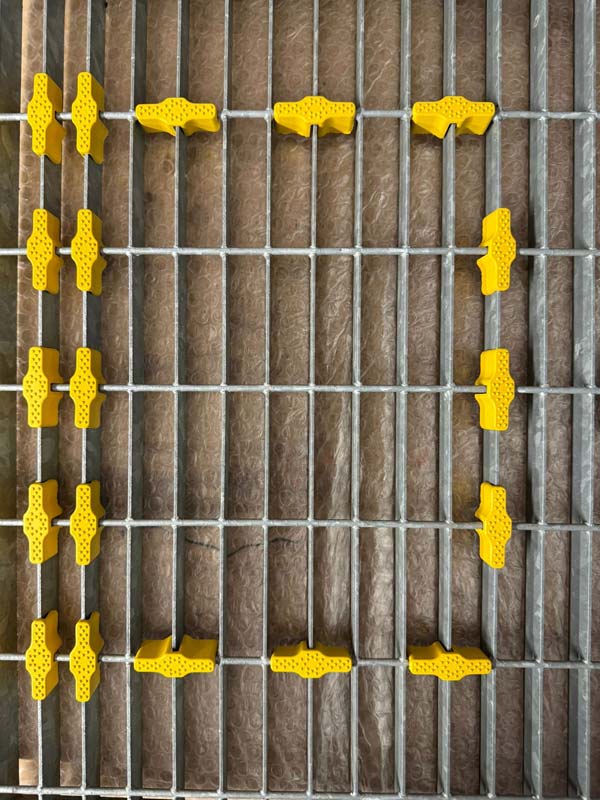

Crossclips mounted on non-slip grating to form a tactile path for the blind

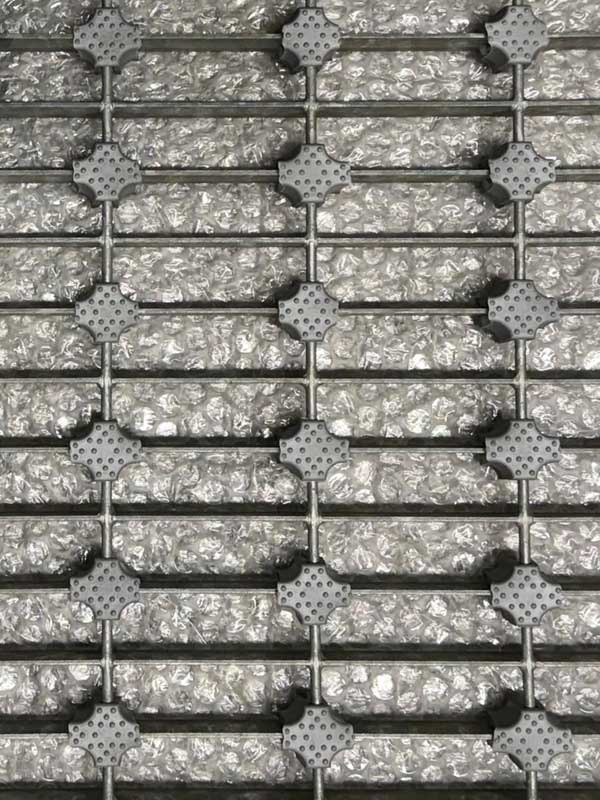

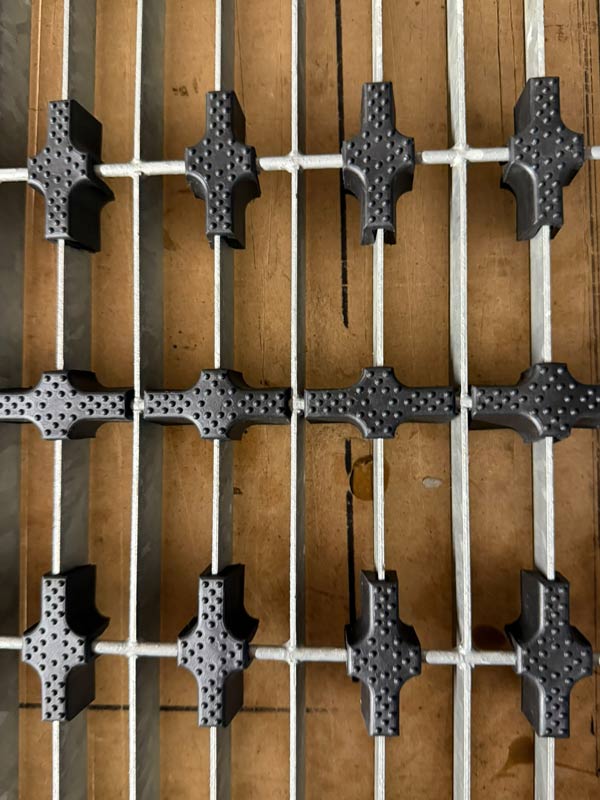

Crossclips mounted on a grid plan

Features of the PVC crossclip:

  • Designed and produced in Italy in lead-free PVC
  • Self-cleaning: Does not collect dirt/dust
  • Anti-static
  • Always non-slip, even when used (guaranteed for 5 years for normal traffic)
  • Anti-trip
  • Does not come off due to impacts (thanks to the steel spring inside)
  • Do-it-yourself fixing, very simple
  • Easily replaceable
  • Does not deform Resists from - 30° C to + 45° C
  • Available in 2 colors black and silver
  • Lets water and snow flow
  • Cross design: non-slip from all directions of origin

Contact us for more info or a quote!


Easy and economical assembly of the anti-slip clips for grating surfaces and grating stairs

The assembly is very simple, it is sufficient to insert the clips manually by pressure on the 2 - 3 / 4 - 5 mm thick bearing plate S, and carry out the alignment with the hammer. Please, let us know the width B of the grating, so that we can supply you with the right size pieces for your grating

No protective measures required, just simple work gloves. No need for adhesives, screws, bolts or maintenance. The duration of the clips is over 5 years, as for every floor product, the duration will be dictated by the nature and the volume of traffic that it will have to sustain.
The quantities to be inserted, linearly or randomly, depend on the grid positioning surface, they are fixed on the steps of the external grating stairs and on the walking surfaces according to the direction and the traffic.

The clips are in self-cleaning PVC, resistant to hydrocarbons, so they can also be used in car refueling stations. With shipping in Italy and European countries.


Economic anti-slip solution for gratings in snow and ice conditions

The simplest solution to make your grating steps or grating floors safer even in the presence of snow and ice, for example on grating floors and stairs near chair lifts and ski lifts in winter lifts.
The PVC clips are heat resistant to sudden changes in temperature (from -30 ° C to + 45 ° C), easy to apply without carrying out renovations.

RAIN? SNOW? FROST? THE IDEAL SOLUTION TO MAKE ANTI-SLIP YOUR STAIRCASE OR YOUR GRILLED FLOOR IN THE MOST ECONOMICAL WAY
